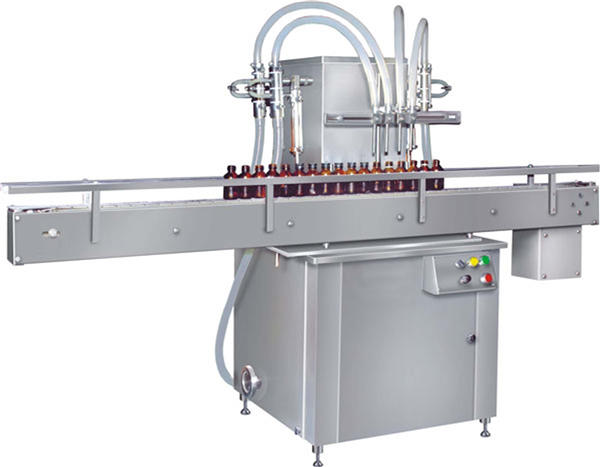

Automatic 2L Bottle Filling Machine,2L Bottle Filling Line,Automatic Small Bottle Filling Machine

2L Bottle Filling Machine,2L Bottle Filling Line,Shampoo Filling Line

VKPAK  series filling machine are suitable for filling cream,ointment,lotion,shower gel,and liquid products etc.

The machine can be used for traditional cylinder filling power,also can adopt servo motor as power filling.

Compared with the traditional cylinder,servo motor filling accuracy is higher,the accuracy can reach<±0.5%,it has the characteristics of high efficiency,high precision,high hygiene standards.

Technical parameter about 2L Bottle Filling Machine,2L Bottle Filling Line,Shampoo Filling Line

Model	Filling volume	Filling speed	Filling precision	Productivity	Air source pressure
VKPAK-50	10-50ml	adjustable	≤±0.3%	2000-3000b/h	0.4-0.8MPa
VKPAK-150	30-150ml	adjustable	≤±0.3%	1800-3000b/h	0.4-0.8MPa
VKPAK300	50-300ml	adjustable	≤±0.3%	1800-2500b/h	0.4-0.8MPa
VKPAK500	100-500ml	adjustable	≤±0.3%	1200-2000b/h	0.4-0.8MPa
VKPAK-1000	200-1000ml	adjustable	≤±0.3%	1000-2000b/h	0.4-0.8MPa

Feature of 2L Bottle Filling Machine,2L Bottle Filling Line,Automatic Small Bottle Filling Machine

---

1.The series of filling machine is featured by compact and reasonable structure,beautiful and decent appearance.

2.It adopts electric components of world’s famous brands.The main power cylinder adopts FESTO dual-action cylinder and magnetic switch,and Japan Mitsubishi PLC computer,Omron photoelectric and Germany Siemens touch screen are adopted to ensure its excellent quality and stable performances.

3.The machine can be conveniently maintained.It can be easily disassembled,assembled and cleaned without the need of using any tools.The adjustment is convenient.When adjusting the metering,first adjust the value to be near the metering at a wide range,then mark sure no filling is made in case of no bottle or bottle shortage.

4.The filling system of the machine adopts the ferrule type quick installed sanitary connector.

5.The whole cylinder can be easily disassembled,assembled and cleaned without the need of usingany tools.It is featured by simple structure design and convenient operation and maintenance.

Quick Details

---

Type: Filling Machine
Condition: New
Application: Beverage, Chemical, Commodity, Food, Medical
Packaging Type: Bags, Bottles, Cartons, Pouch
Packaging Material: Plastic, Wood
Automatic Grade: Automatic
Driven Type: Electric
Voltage: 220V/380V
Power: 3KW
Place of Origin: Shanghai, China (Mainland)
Brand Name: VKPAK
Dimension(L*W*H): 6000*1300*2200(mm)
Weight: 500kg
Certification: GMP
After-sales Service Provided: Engineers available to service machinery overseas
Item: 2L Bottle Filling Machine,2L Bottle Filling Line,Shampoo Filling Line
Filling volume: 10-1000ml
Filling speed: adjustable
filling precision: ≤±0.3
Production capacity: 1000-3000bph
Air source pressure: 0.4-0.8MPA
Function: Bottle Washing Filling Capping
Processing: Filling+stoppering+capping
Material: Stainless Steel
Warranty: 1 Year

---
