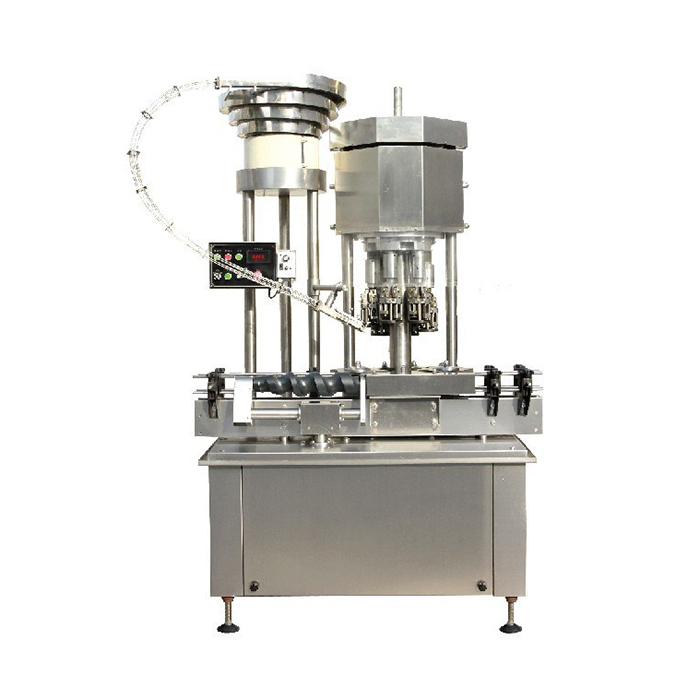

Automatic Multi Head ROPP Cap Sealing Machine

SALIENT FEATURE OF MACHINES

---

Total cGMP model.

Parts coming in contact with the vial / aluminium cap / exposed to the atmosphere are made out of stainless steel, good housekeeping and good manufacturing practice.

Single motor synchronizes conveyor, star wheels and platform turret and speed can be varied by the % speed pot on panel.

A Special clutch device is incorporated on the in feed worm and Star wheel system for stoppage of machine in the event, vial is over turned or over diameter.

Pepperl+Fuchs, Germany made photo sensing device stops machine automatically in the event, there is no Plastic cap in delivery chute.

Sealing Pressure can be varied to suit different gauges and sizes of ROPP caps.

Damage cap quantity can be reduced by adjusting the gap between upper and lower plate of orientation unit.

Imported Gear Motor for Main drive.

Imported Gear box for Orientation unit.

A.C. Frequency drives for Main drive.

Digital Counter for counting number of sealed vials.

“No Seal in Chute, Machine Stops System”

SCHEMATIC MACHINE WORKING

---

Automatic Multi head ROPP Cap sealing Machine is a compact model used for sealing of ROPP Caps on the bottle.

Previously filled bottles with Dry Syrup Powder or Liquid Syrup are continuously fed from filling machine to the flat conveyor belt of sealing machine and move further through in feed worm for correct spacing between two bottles and transferred to the in feed star wheel.

ROPP caps kept in orientation unit automatically orient caps in right direction before entering into delivery chute. And Bottle is entering below the sealing head, consist of total four rollers.

Two rollers properly Skirts, Spins and Seals the cap and simultaneously another two roller performs perfect threading according to bottle neck diameter.

After sealing operation, sealing head moves upward with help of cam and bottle move with exit star wheel and Move further on conveyor belt for next operation.

Technical specification

---

Model	VKPAK-350R
Direction	Left to Right
Production rate	Up to 180 Bottle per minute for 50 ml bottle
Electrical supply	2 hp for Main drive
	0.5 HP for orientor unit
No of Sealing Head	8 Head
Power requirement	440 V ,3 Phase (4 Wire System ) 50 HZ
Height of Conveyor	Adjustable from 800 to 850 mm
Dimension (L X W X H) mm	2130 X 915 x 1900

Quick Details

---

Type: Capping Machine
Condition: New
Application: Beverage, Chemical, Food, Machinery & Hardware
Driven Type: Mechanical
Automatic Grade: Automatic
Voltage: 440 V
Power: 2 HP
Place of Origin:Shanghai China
Brand Name: VKPAK
Model Number: VKPAK-350R
Dimension(L*W*H): 2130 X 915 x 1900
After-sales Service Provided: Engineers available to service ...

---
