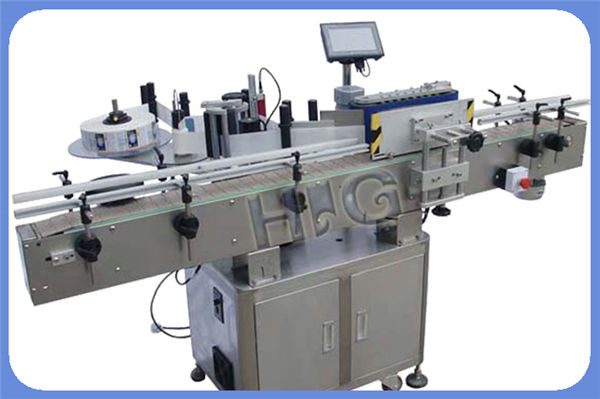

Automatic Round Bottle Labeling Machine Manufacturer With Printer

Product Description


1. The Scope of Application

The model PLM-DLM104 Labeling machine suit for differnet size round shape products, such as bottle, jars ,cans in food, medicine, daily chemical and other light industries.
2. Equipment composition

Electrical cabinet,Conveying mechanism,Separate bottle device,Roll label device,Brush label device,1# labeling engine,Operation system and control system ;

3. Equipment function characteristics

1) Control system: Use SIEMENS brand PLC control system, with high stable operation and extremely low failure rate.

2) Operation system:The man machine control 7 inch touch screen, directly visual interface easy operation, with Chinese and English two kinds language, also rich withthe help function and fault display function.

3) Check system: Use German LEUZE check label sensor, automatic check label station, stable and convenient don’t have much higher requirement for worker.

4) Send label system: Use SIEMENS high-power servo control system, stable with high speed.

5) Alarm function: Such as label spill, label broken or other malfunction during machine working all will alarm and stop working.

6) Machine Material: Machine and spare parts all use material S304 stainless steel and anodized senior aluminum alloy,with high corrosion resistance and never rust.

7) Low voltage circuit all use the German Schneider brand.

Technical Parameter


driving motor
German Avery brand
operating direction
left or right
production (bottles/min)
20-200(subject to the size of bottles )
labeling accuracy
±1.0 mm (subject to the roughness of the plane)
label specifications
adhesive label, transparent or opaque
the application of bottle
can customized
the application of label
width:15-160mm Length:15-300mm
the inner diameter of label roll
76mm
the outer diameter of label roll
350mm(max.)
the power of motor
550W
Voltage
AC220V,50/60HZ Single phase
size appearance
1900(L) 950(W) 1300(H)mm
No.
Name
Model
Unit
Brand
1
PLC control system
288-1ST20-OAAO
1 set
SEMIENS
2
touch screen
648-OCC11-3AXO
1 set
SEMIENS
3
photoelectric sensor (check bottle)
FS-N18N
1 set
Japan KEYENCE
4
photoelectric sensor (check label)
GS61/6.2
1 set
German Lueze
Photoelectric sensor       (Check opaque and transparent label)
LRD 2100
1 set
USA Lion
5
Drive
ALS104/206
1 set
German Avery
6
Servo motor
ALS104/206
1 set
German Avery
7
Main transport motor
90YS90DV22
1 set
German JSCC
8
Rolling label motor
40W1:30
1 set
German JSCC
9
Separate bottle motor
40W1:30
1 set
German JSCC
10
Speed Controller
25-90W
1 set
German JSCC

Bottle Labeling Machine Videos




Quick Details


Type: Labeling Machine
Condition:New
Application: Beverage, Chemical, Commodity, Food, Medical
Packaging Type: bottle,cans,jars
Packaging Material: Paper, Plastic, Wood
Automatic Grade: Automatic
Driven Type: Electric
Voltage: 110 or 220v or 380V
Power: 550W
Place of Origin: Shanghai, China (Mainland)
Brand Name: VKPAK
Dimension(L*W*H): 1800(L) 700(W) 1270(H)mm
Weight: 250kg
Certification: ISO CE
After-sales Service Provided: Engineers available to service machinery overseas
Drive Motor: German Avery brand
Function: Ahesive Sticker Labeling
Labeling speed: 60-200pcs/min
Bottle type: Round Bottle /Jars/cans
Product name: Auto Round Bottle Labeling Machine
Usage: Adhesive Labels Bottles
Material: S304 Stainless Steel
Advantage: Factory price Economy Labeling Machine
Name: Sticker Labeling Machine
Other name: Automatic Bottle Labeling Machine
