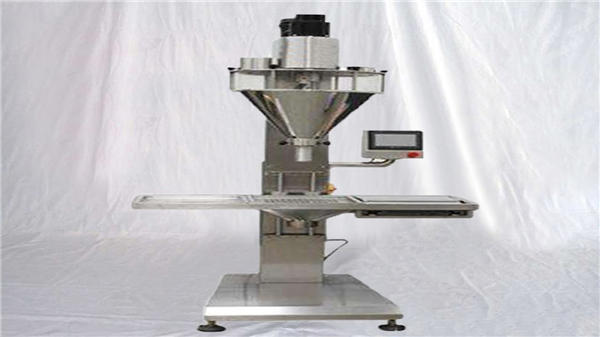

Manual Powder Filling Machine

VK-SPAF Manual Powder Filling Machine

This type can do dosing and filling work. Due to the special professional design, so it is suitable to the fluidic or low-fluidity materials, like coffee powder, wheat flour, condiment, solid drink, veterinary drugs, dextrose, pharmaceuticals, powder additive, talcum powder, agriculture pesticide, dyestuff, and so on.

Servo motor drive screw.
Weight feedback and proportion track get rid of the shortage of variable packaged weight for various proportion of different material.
Save the parameter of different filling weight for different materials. To save 10 sets at most
Replacing the auger parts, it is suitable for material from super thin powder to granule.



Model	VK-SPAF-50	VK-SPAF-1000	VK-SPAF-5000
Control system	PLC & Touch Screen	PLC & Touch Screen	PLC & Touch Screen
Hopper	Quick disconnecting hopper 25L	Quick disconnecting hopper 50L	Split hopper 50L
Packing Weight	1 - 500g	10 - 1000g	10 - 5000g
Packing Weight	≤ 100g, ≤±2%; 100 – 500g, ≤±1%	≤ 100g,≤±2%; 100 – 500g,≤±1%; ≥500g,≤±0.5%	≤ 100g, ≤±2%; 100-500g, ≤±1%; ≥500g, ≤±0.5%
Filling speed	40 – 120 times per min	40 – 120 times per min	40 – 120 times per min
Power supply	3P  AC208-415V  50/60Hz	3P AC208-415V 50/60Hz	3P AC208-415V 50/60Hz
Total Power	0.93 Kw	1.4Kw	1.4Kw
Total Weight	130kg	260kg	280kg
Overall Dimensions	800×790×1900mm	1140×970×2200mm	1140×970×2200mm

Specifications
1Manual Powder Filling Machine
2 Contact parts is 316SS
3 Anti-drop and Leakeage

Quick Details

---

Type: Filling Machine
Condition: New
Application: Chemical, Food, Machinery & Hardware, Medical
Packaging Type: Bottles, Capsule
Packaging Material: Glass, Plastic
Automatic Grade: Automatic
Driven Type: Electric
Voltage: 220V single phase
Power: 2KW
Place of Origin: Shanghai, China (Mainland)
Brand Name: VKPAK Manual Powder Filling Machine
Model Number: VK-SPAF-50 Manual Powder Filling Machine
Dimension(L*W*H): 2500*1400*1600
Weight: 550KG
Certification: CE ISO9001
After-sales Service Provided: Engineers available to service machinery overseas
Model: VK-SPAF-50 Manual Powder Filling Machine
Function: Filling powder into bottle and screw cap
Filling volume: 0.5G-20G 100g-5000g

---
