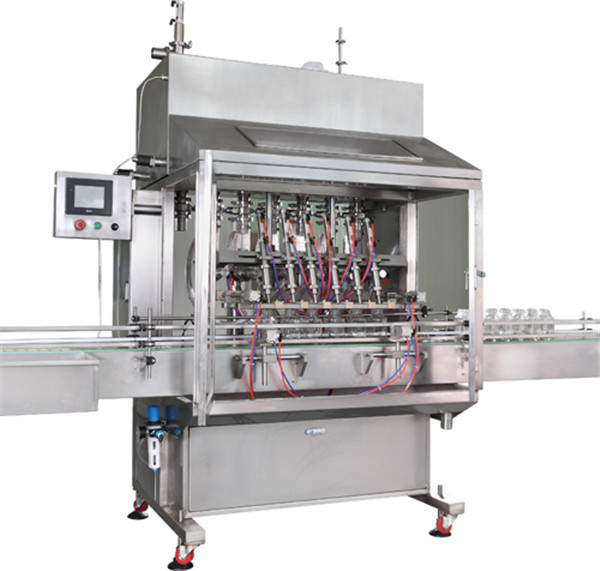

Sina Ekato Own Complete Car Engine Oil Filling Production Line, Oil Filling Machine



Quick Details

---

Type: Filling Machine, Packing Machine
Condition: New
Application: Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical
Packaging Type: Barrel, Bottles, Cans, Cartons
Packaging Material: Plastic, Wood
Automatic Grade: Automatic
Driven Type: Pneumatic
Voltage: 220V / 380V
Power: 7.5KW
Place of Origin: Shanghai, China (Mainland)
Dimension(L*W*H): 8000*5000*12000MM
Weight: 160KG
Certification: TUV, GMP, CE
After-sales Service Provided: Engineers available to service machinery overseas
Filling Volume: 0-50ml/50-300ml/300-500ml/500-1000ml(can be customerized);
Filling Accuracy: ≤±1%
Filling Speed: 500-1500B/H
Power: 220V: single phase
Air Supply: 0.4-0.7kgMpa

Technical Parameter

---

Filling Volume(ml)	Productivity(b/h)	Filling Speed	Filling Precision	Air Supply
10-50	1500-3500	Adjustable	≤±1%	0.4-0.8MPa
80-300	1500-3000	Adjustable	≤±1%	0.4-0.8MPa
100-500	1500-2500	Adjustable	≤±1%	0.4-0.8MPa
300-1000	1500-2500	Adjustable	≤±1%	0.4-0.8MPa
1000-5000	1000-2000	Adjustable	≤±1%	0.4-0.8MPa
Note: In case of inconformity of the data in the table due to technical improvement or customization, the real object shall prevail.

Feature

---

A. All adopt compressed air as the control, so they are quite suitable for the use in the request of anti-explosion environment, has high safety.

B. Does not occur the phenomenon of static electricity, the leakage of electricity and no need to connect the ground wire

C. All adopt pneumatic control besides hardware positioning, so they have high filling precision as the precision can be controlled within 0.5%.

(with the greatest amount of filling as standards)

---
